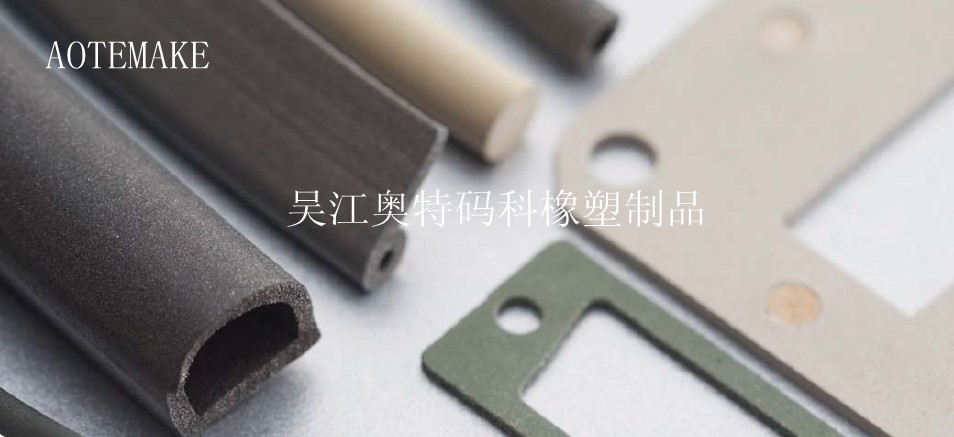

| Conductive rubber |
|
Filler graphite silver glass test methods nickel plating nickel silver plating silver plated copper aluminum silver pure silver carbon
The highest operating temperature + 160 + 160 + 160 + 160 + 160 + 160 + 160
The lowest operating temperature ASTM D-1329-50-50-50-50-50-50-50
Proportion (plus or minus 5%) ASTM D-792 1.99 1.75 4.60 2.00 3.02 3.20 1.19
Hardness (plus or minus 5) A ASTM D-2240 60 60 80 65 60 75 70
Minimum extend rate % ASTM D-412 100 80 100 175 100 100 150
Compression ratio % ASTM D-395 30 30 30 30 30 30 20
Minimum tensile strength (min) ASTM D-412 1.00 0.90 1.25 0.90 1.00 1.25 5.00
The maximum volume resistivity (Max) 0.1 0.05 0.005 0.008 0.008 0.002 9.00
Shielding effect (dB)
200 KHz (H field) 70 75 70 75 70 30 55
100 MHz (E field) 95 95 110 110 110 115 65
500 MHz (E field) 90 90 110 105 120 115
2 GHz (plane) 90 90 105 100 120 115
10 GHz (plane) 90 90 100 100 120 115
|
